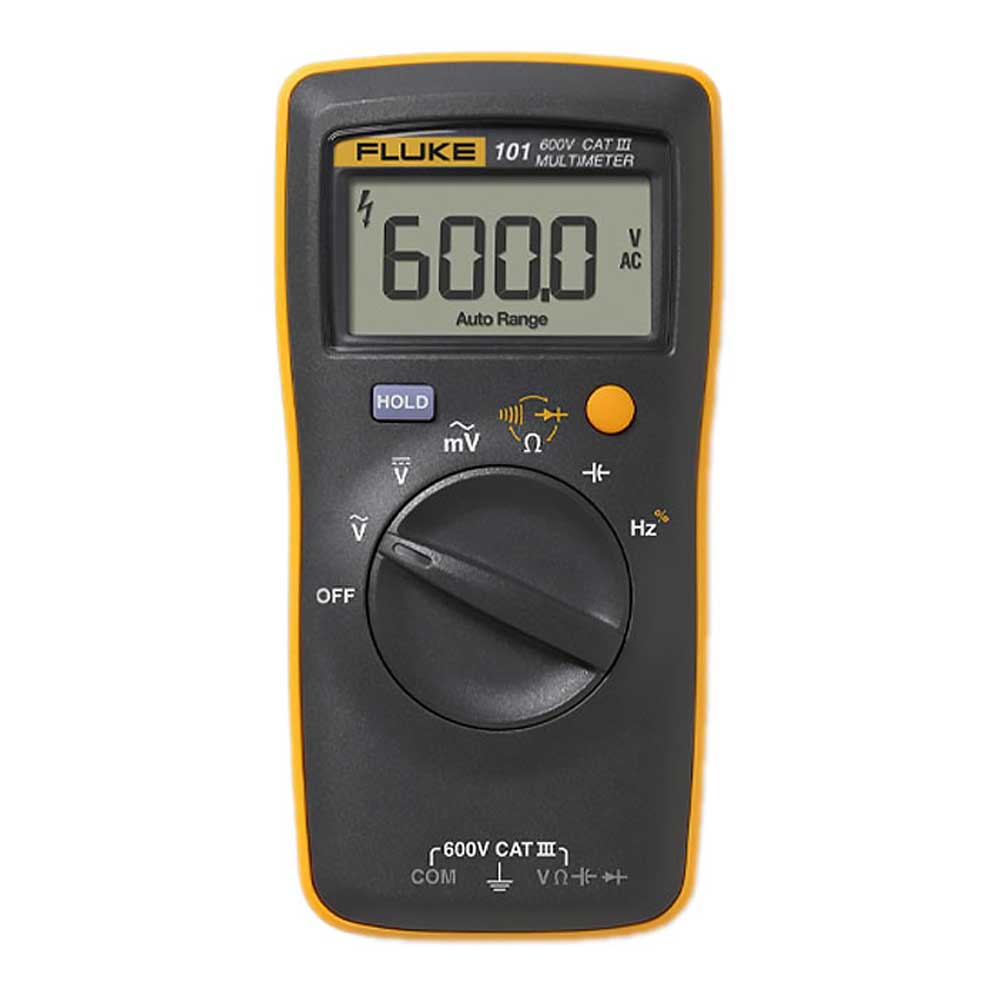

Fluke 101 Mini Auto Range Digital Multimeter for AC / DC Voltage Frequency Duty Cycle Test

Categories: , , SKU: FLUKE101

3,999.00

  • Fluke 101 Mini Auto Range Digital Multimeter for AC / DC Voltage Frequency Duty Cycle Test

Description

Fluke 101 Mini Auto Range Digital Multimeter for AC/DC Voltage Frequency Duty Cycle Test



Features:

  • Automatic power-saving mode
  • Auto range tests can be used for measurement more conveniently and rapidly. Also, it reduces the rotations of the impeller and extends the life of the instrument
  • Data hold function, it is easier to read the testing result
  • It meets IEC61010-1 CATIII 600V safety grade standard, the scene and range of testing for users can be much more widespread and safer so that it will not only protect the user investment but also ensure the safety of personnel and equipment


Specification:

Function Range The resolution of the Accuracy of + / – + minimum resolution (% readings words)
AC voltage measurement V(40Hz-500Hz) 6.000V 0.001V 1%+3
60.00V 0.01V
600.0V 0.1V
DC voltage measurement 6.000V 0.001V 0.5%+3
60.00V 0.01V
600.0V 0.1V
Communication millivolt measurement 600.0 mV 0.1mV 3%+3
Diode test 2.000V 0.001V 10%
Resistance test 400.0 Ω 0.1 Ω 0.5 % + 3
4.000 kΩ 0.001 kΩ 0.5 % + 2
40.00 kΩ 0.01 kΩ 0.5 % + 2
400.0 kΩ 0.1 kΩ 0.5 % + 2
4.000 MΩ 0.001 MΩ 0.5 % + 2
40.00 MΩ 0.01 MΩ 1.5% + 3
Capacitance test 50.00 nF 0.01 nF 2 % + 5
500.0 nF 0.1 nF 2 % + 5
5.000 μF 0.001 μF 5 % + 5
50.00 μF 0.01 μF 5 % + 5
500.0 μF 0.1 μF

5 % + 5

1000 μF 1 μF 5 % + 5
Frequency test(10Hz-100KHz) 50.00 Hz 0.01 Hz 0.1 % + 3
500.0 Hz 0.1 Hz
5.000 kHz 0.001 kHz
50.00 kHz 0.01 kHz
100.0 kHz 0.1 kHz
Duty ratio% 1%-99% 0.1% 1% Typical values

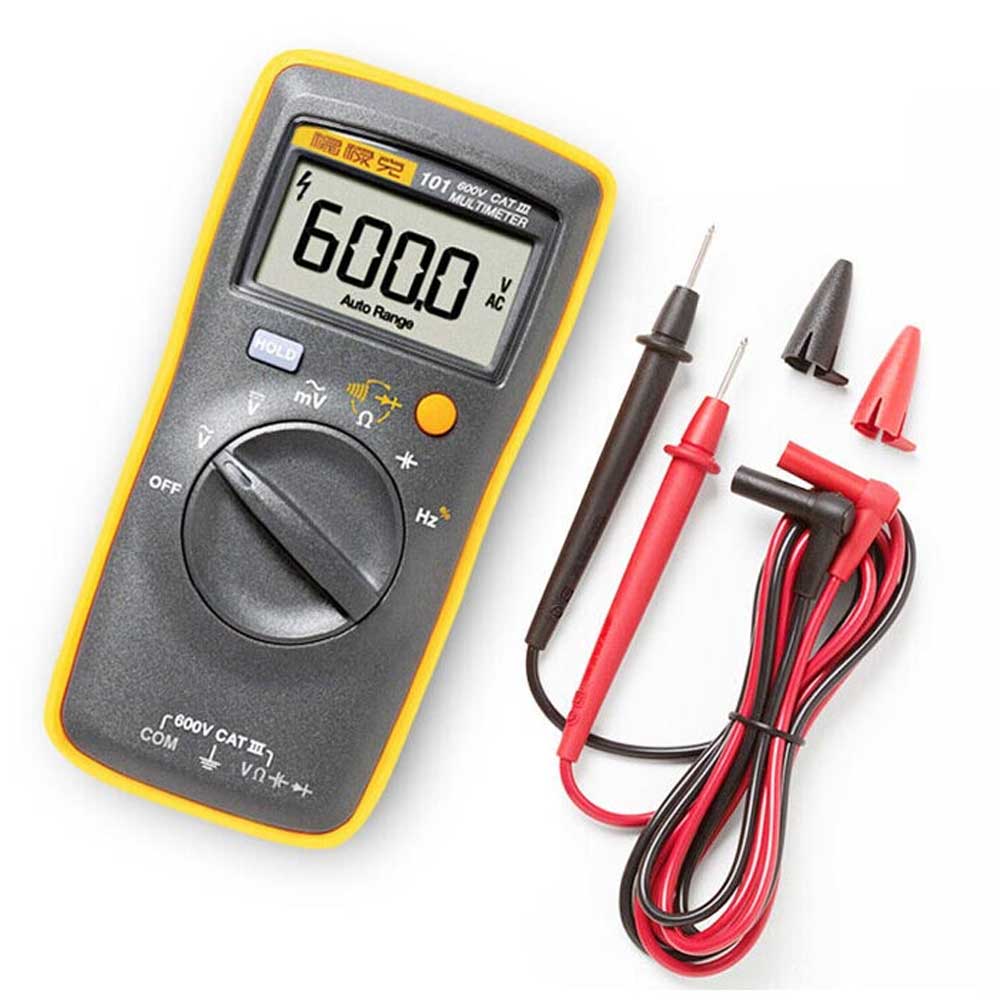

Package includes:

  • 1 x Multimeter(without battery)
  • 1 x Test line
  • 1 x Use Manual

Additional information

Weight 0.350 kg
Dimensions 18 × 12 × 6 cm
